Metal Seat Lubricated Plug Valve, API 6D, 1/2-60IN, 150-2500 LB
Key Specifications / Features
Model No.: Hits: 20
Metal Seat Lubricated Plug Valve Supplier: Metal Seated Lubricated Plug Valves, 1/2-60 Inch, Class 150-2500 LB, PN16-PN420, API 6D, API 594, ASME B16.34.
Request a quoteTags
Detail Information

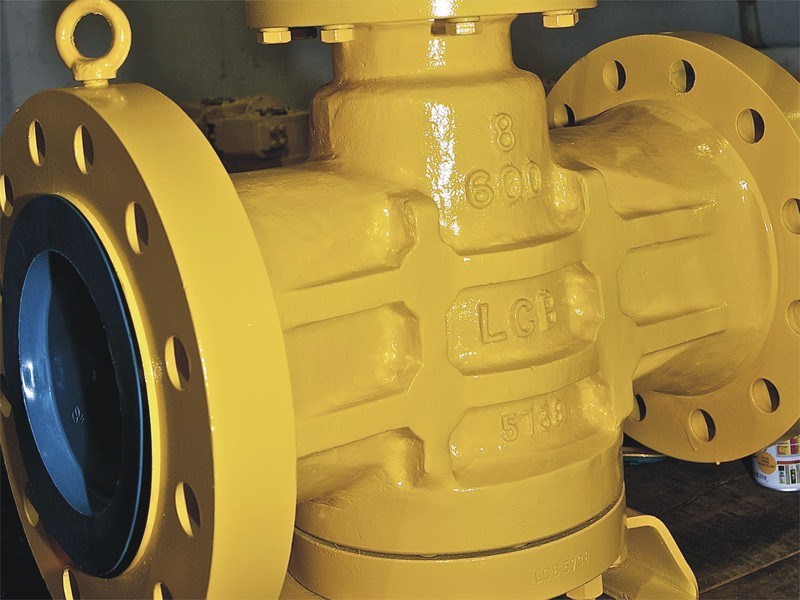

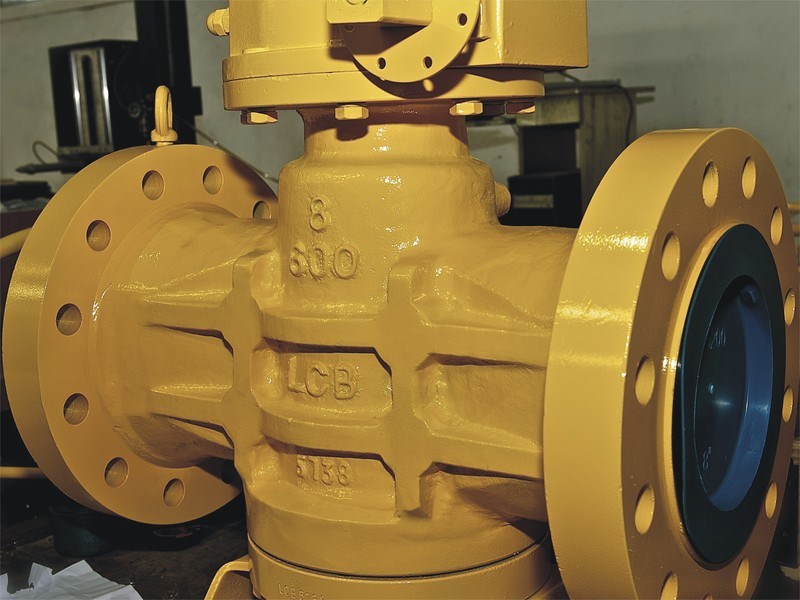

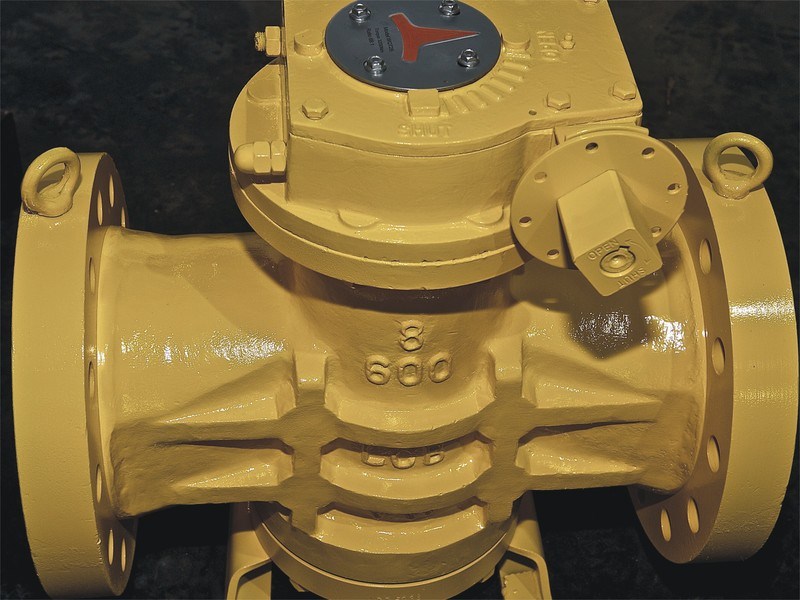

Metal Seat Lubricated Plug Valve
Lubricated Plug Valves also called Inverted Pressure balance lubricated plug valve acc. To API 599 or API 6D to cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry and etc. Under normal pressure of Class 150-2500 LB and working temperature of -29 - 180 ℃.
● COMPACT CONSTRUCTION
● PROTECTED SURFACES
● MINIMUM MAINTENANCE
● TIGHTHEAD SEAL
● Simplicity
Standards Compliance and Design Features
Design & Manufactured: API 6D, API 594, ASME B16.34 or Equivalent.
P.T Ratings: ASME B16.34.
Face to Face Dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-60 Inch.
Structured in One Piece Union Body.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Ends Connections in Flanged R.F or RTJ, Wafer, Fully Lugged and Grooved.
A variety of body and trim material is offered, including carbon steel ASTM A216 WCB, ASTM A216 WCC, Low Carbon Steel LCB, ASTM A352 LCC, Alloy Steel WC6, ASTM A217 WC9, ASTM A217 C5, Stainless Steel CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, Duplex & Super Duplex Steel A890 GR.4A, ASTM A890 5A or ASTM A182 F51, Special Materials in Monel, Alu. Bronze C95800, 95600, etc. Coatings may be provided for added corrosion or wear resistance. Hard-facing and weld overlays may also be supplied. Seat Options with metal-to-metal or bubble-tight resilient.
Lubricated Plug Valves also called Inverted Pressure balance lubricated plug valve acc. To API 599 or API 6D to cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry and etc. Under normal pressure of Class 150-2500 LB and working temperature of -29 - 180 ℃.
● COMPACT CONSTRUCTION
● PROTECTED SURFACES
● MINIMUM MAINTENANCE
● TIGHTHEAD SEAL
● Simplicity
Standards Compliance and Design Features
Design & Manufactured: API 6D, API 594, ASME B16.34 or Equivalent.
P.T Ratings: ASME B16.34.
Face to Face Dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-60 Inch.
Structured in One Piece Union Body.
Pressure Ratings: Class 150-2500 LB, PN16-PN420.
Ends Connections in Flanged R.F or RTJ, Wafer, Fully Lugged and Grooved.
A variety of body and trim material is offered, including carbon steel ASTM A216 WCB, ASTM A216 WCC, Low Carbon Steel LCB, ASTM A352 LCC, Alloy Steel WC6, ASTM A217 WC9, ASTM A217 C5, Stainless Steel CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, Duplex & Super Duplex Steel A890 GR.4A, ASTM A890 5A or ASTM A182 F51, Special Materials in Monel, Alu. Bronze C95800, 95600, etc. Coatings may be provided for added corrosion or wear resistance. Hard-facing and weld overlays may also be supplied. Seat Options with metal-to-metal or bubble-tight resilient.
