Forged Steel Check Valve, 1/2-2 Inch, 150-1500 LB
Key Specifications / Features
Model No.: Hits: 14
Forged Steel Check Valve Provider: API 602 Forged Check Valves, 1/2-2 Inch, Class 150-1500 LB, PN16-PN250, API 602, ASME B16.34, Full or Reduce Bore.
Request a quoteTags
Detail Information

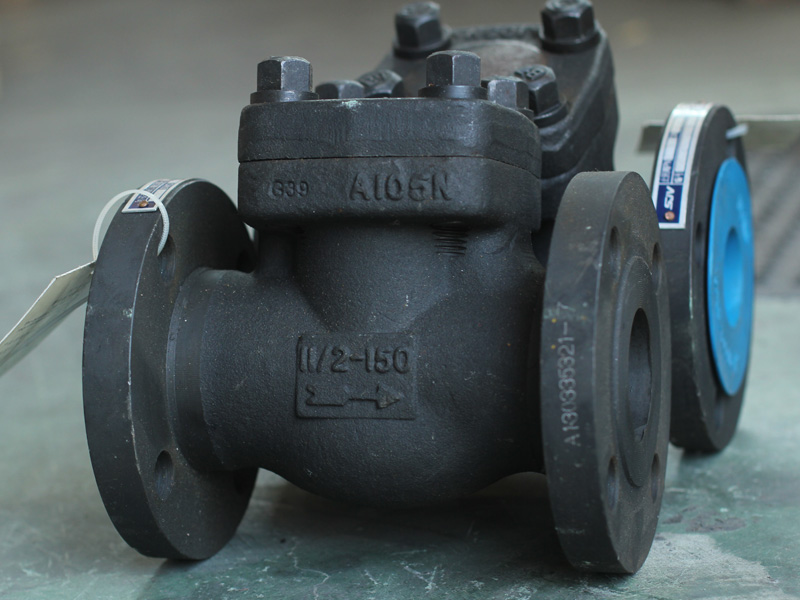

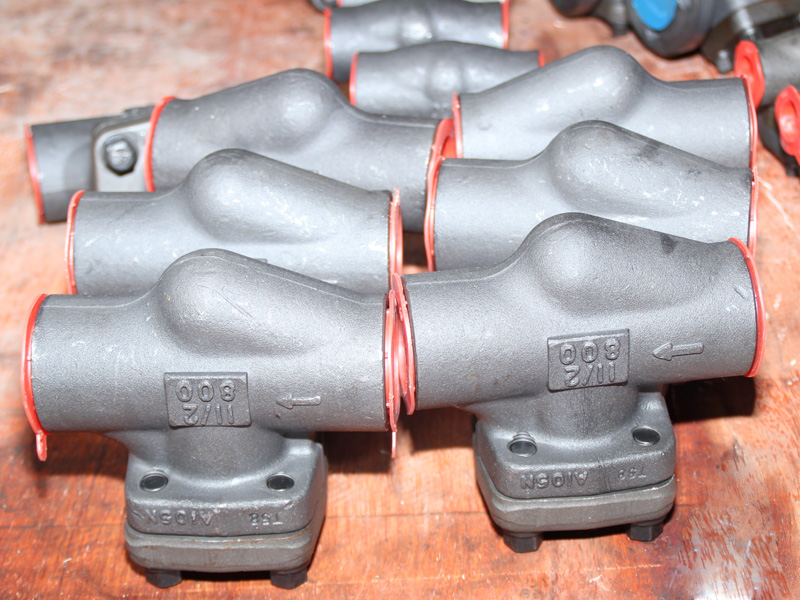

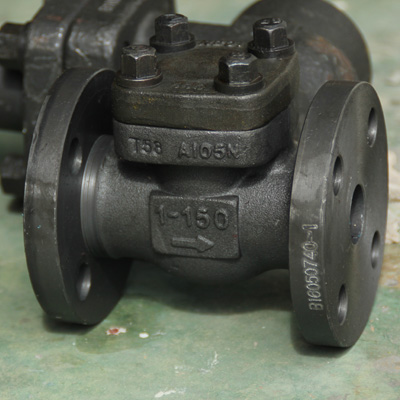

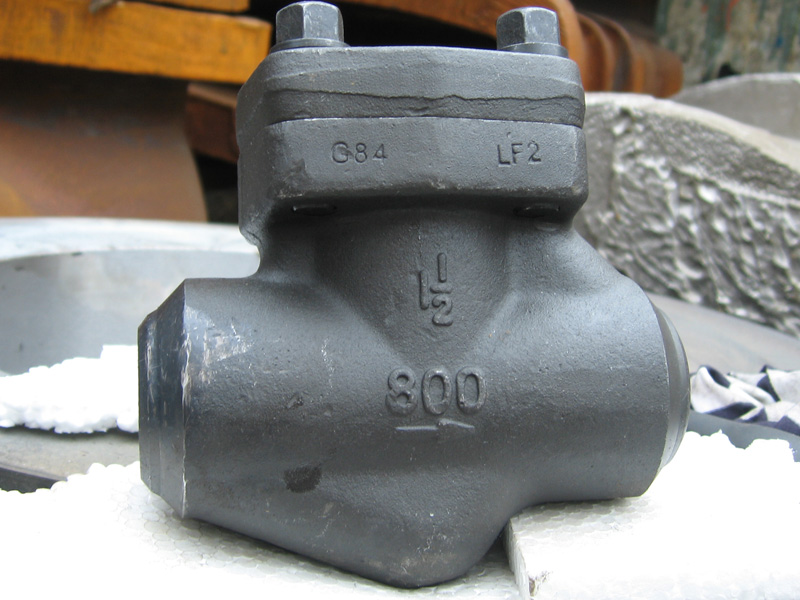

Forged Steel Check Valve
Med Forged Steel Check Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34 or Equivalent, to reduce the flow resistance and pressure drop to the minimum possible extend, which is suitable to be mounted in horizontal position only, lapped and screwed in seat ring ensures tight shut off and long duration service. Valve's disc is perfectly designed, accurately machined and guided for efficient automatic shut off at zero pressure, with a feature of compact structure & Low emission service. In both Swing & Piston Constructions.
Standards Compliance
Design & Manufactured: API 602, ASME B16.34.
P.T Ratings: ASME B16.34.
Face to Face Dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Threaded Ends: ASME B1.20.1.
Socket-weld End: ASME B16.11.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Structured in Bolted Cover.
Pressure Ratings from Class 150-1500 LB, PN16-PN250.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Sizes Ranges: 1/2-2 Inch for Forged Items.
Body Materials available in Forged Carbon Steel, Low Temp. Forged Carbon Steel, Forged Alloy Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Steel, Special Materials in Forged Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Full Port or Reduce Bore.
Med Forged Steel Check Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34 or Equivalent, to reduce the flow resistance and pressure drop to the minimum possible extend, which is suitable to be mounted in horizontal position only, lapped and screwed in seat ring ensures tight shut off and long duration service. Valve's disc is perfectly designed, accurately machined and guided for efficient automatic shut off at zero pressure, with a feature of compact structure & Low emission service. In both Swing & Piston Constructions.
Standards Compliance
Design & Manufactured: API 602, ASME B16.34.
P.T Ratings: ASME B16.34.
Face to Face Dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Threaded Ends: ASME B1.20.1.
Socket-weld End: ASME B16.11.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Structured in Bolted Cover.
Pressure Ratings from Class 150-1500 LB, PN16-PN250.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Sizes Ranges: 1/2-2 Inch for Forged Items.
Body Materials available in Forged Carbon Steel, Low Temp. Forged Carbon Steel, Forged Alloy Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Steel, Special Materials in Forged Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Full Port or Reduce Bore.
