Forged Carbon Steel Ball Valve, 1/2-6 IN, CL150, Wafer Ends
Key Specifications / Features
Model No.: Hits: 10
Forged Carbon Steel Ball Valve Manufacturer: Forged Ball Valves, Carbon Steel, 1/2-6 Inch, 150 LB, Wafer Ends, BS 5351, ASME B16.34, DIN 3357, ASME B16.5.
Request a quoteTags
Detail Information

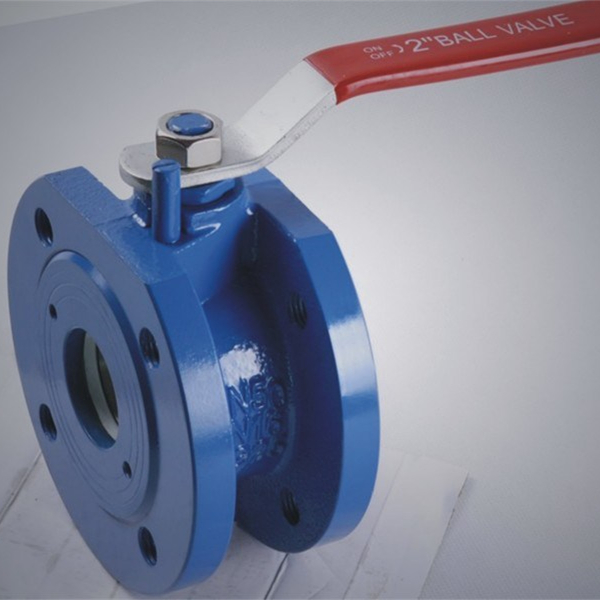

Forged Carbon Steel Ball Valve
MED Wafer Ball Valves are designed for process systems where lightweight, compact envelope size and ease of installation and repair are important considerations. Available in sizes 1/2 - 6 Inch, wafer ball valves are rated at 720 CWP and mount between ANSI Class 150 - 300 flanges. They are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents with fire-safe, anti-static and blow-out features.
Features
Size Ranges: 1/2 - 6 Inch (DN15 - DN150)
Pressure Ratings: PN10, PN16, ASA Class 150 LB
Standards Compliance: BS 5351, ASME B16.34, DIN 3357, ASME B16.5, ISO 5208, API 598, DIN 2504 or Equivalents
Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Wafer Ends to International Standards
Optional Direct Mounting to ISO 5211
Optional Locking Device
Full Port
MED Wafer Ball Valves are designed for process systems where lightweight, compact envelope size and ease of installation and repair are important considerations. Available in sizes 1/2 - 6 Inch, wafer ball valves are rated at 720 CWP and mount between ANSI Class 150 - 300 flanges. They are designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents with fire-safe, anti-static and blow-out features.
Features
Size Ranges: 1/2 - 6 Inch (DN15 - DN150)
Pressure Ratings: PN10, PN16, ASA Class 150 LB
Standards Compliance: BS 5351, ASME B16.34, DIN 3357, ASME B16.5, ISO 5208, API 598, DIN 2504 or Equivalents
Materials: Forged Carbon Steel, Stainless Steel, Duplex or Other Specials
Ends Connections: Wafer Ends to International Standards
Optional Direct Mounting to ISO 5211
Optional Locking Device
Full Port
