Forged Angle Globe Valve, 1/2-4 Inch, 150-1500 LB, API 602
Key Specifications / Features
Model No.: Hits: 16
Forged Angle Globe Valve Provider: Forged Steel Angle Globe Valves, 1/2-4 Inch, Class 150-1500 LB, API 602, ASME B16.34, DIN 3202, OSY, BW, RF, RTJ, Grooved.
Request a quoteTags
Detail Information

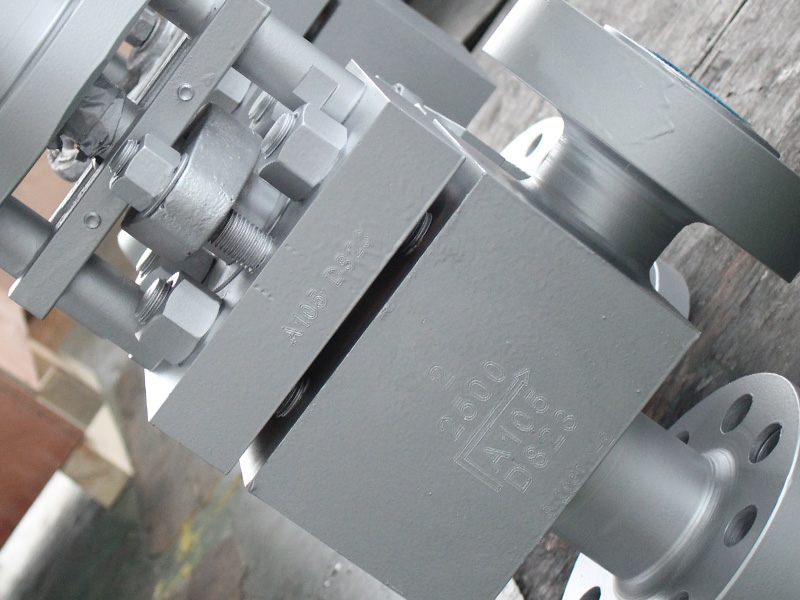

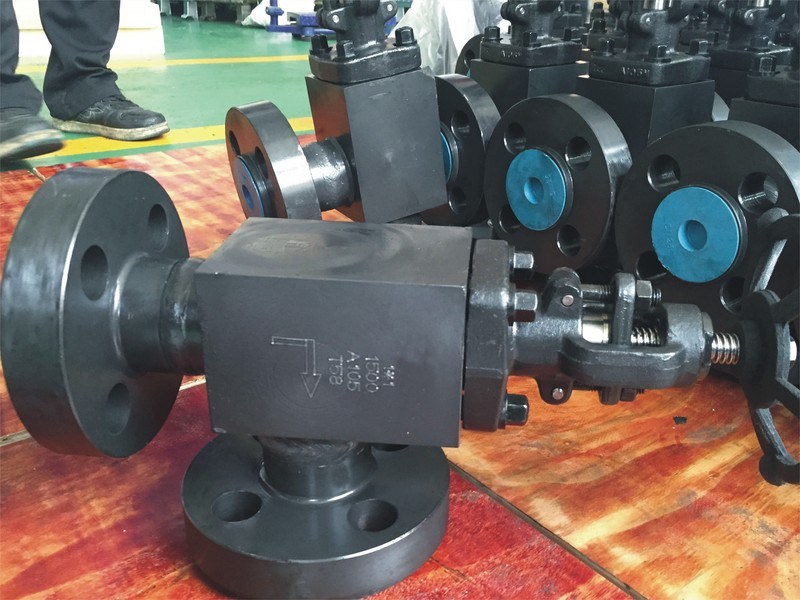

Forged Angle Globe Valve
Med Forged Steel Angle Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34 or DIN 3202, designed with a 90 degree between inlet and outlet to suitable for the angle pipe, Featured with compact structure & Tight shut off service.
Med Angle Type Globe Valves are with main Features as below:
Design & Manufactured: API 602, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-4 Inch, DN15-DN100.
Pressure Ratings: Class 150-1500 LB, PN16-PN250.
Structured in Bolted Cover, Outside Screw and York.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Body Materials available in Carbon Steel, Low Carbon Steel, Alloy Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials in Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Devices, Electric/Pneumatic or Hydraulic Actuators.
Optional Globe Check, Bypass system, Live Loading Packing & O-ring Seal.
Med Forged Steel Angle Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34 or DIN 3202, designed with a 90 degree between inlet and outlet to suitable for the angle pipe, Featured with compact structure & Tight shut off service.
Med Angle Type Globe Valves are with main Features as below:
Design & Manufactured: API 602, ASME B16.34 or DIN 3202.
P.T Ratings: ASME B16.34.
Face to Face dimensions: ASME B16.10.
Flanged Ends: ASME B16.5.
Butt-weld Ends: ASME B16.25.
Valves Marking: MSS SP-25.
Inspect & Tested: API 598.
Size Ranges: 1/2-4 Inch, DN15-DN100.
Pressure Ratings: Class 150-1500 LB, PN16-PN250.
Structured in Bolted Cover, Outside Screw and York.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved.
Body Materials available in Carbon Steel, Low Carbon Steel, Alloy Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials in Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
Actuations can be equipped with Handwheel, Gear Devices, Electric/Pneumatic or Hydraulic Actuators.
Optional Globe Check, Bypass system, Live Loading Packing & O-ring Seal.
