DBB Trunnion Ball Valve, API 6D, ASME B16.34, BS 5351
Key Specifications / Features
Model No.: Hits: 22
DBB Trunnion Ball Valve Supplier: Double Block and Bleed Trunnion Mounted Ball Valves, 1/2-40 Inch, Class 150-2500 LB, API 6D, ASME B16.34, BS 5351.
Request a quoteTags
Detail Information

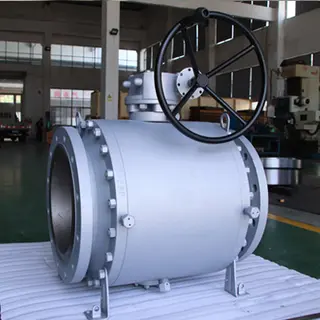

Name: Cast Trunnion Ball Valve, API 6D, ASME B16.34, BS 5351 or equivalents
Cast Steel Trunnion mounted ball valves allow easy and smooth operation at high line pressure. Carefully aligned bearings assist low torque operation. The ball is fixed in position but free to turn. All Casted Trunnion Ball Valves manufactured by Med are with reliable high-quality castings and fire-safe design certified according to BS 6755, API 607 & API 6FA. Meet all applicable ASME standards.
Cast Steel Trunnion Ball Valves Manufactured by Med is available in types of Two Piece Split Body & Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof.
size range: 1/2-40 Inch.
Pressure Ratings: ANSI Class 150-2500 LB.
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents.
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials.
Ends Connections: Flanged R.F, RTJ, Welded or Victaulic.
Optional Locking Device or Stem Extension.
Optional Direct Mounting to ISO 5211.
Full Port or Regular Bore.
Double Block and Bleed.
Cast Steel Trunnion mounted ball valves allow easy and smooth operation at high line pressure. Carefully aligned bearings assist low torque operation. The ball is fixed in position but free to turn. All Casted Trunnion Ball Valves manufactured by Med are with reliable high-quality castings and fire-safe design certified according to BS 6755, API 607 & API 6FA. Meet all applicable ASME standards.
Cast Steel Trunnion Ball Valves Manufactured by Med is available in types of Two Piece Split Body & Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof.
size range: 1/2-40 Inch.
Pressure Ratings: ANSI Class 150-2500 LB.
Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents.
Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials.
Ends Connections: Flanged R.F, RTJ, Welded or Victaulic.
Optional Locking Device or Stem Extension.
Optional Direct Mounting to ISO 5211.
Full Port or Regular Bore.
Double Block and Bleed.
