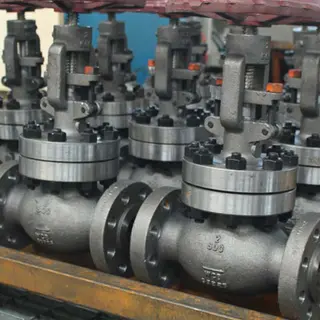

API 598 Globe Valve, 10 Inch, 150 LB, ASTM A216 WCB, RF
Key Specifications / Features
Model No.: Hits: 14
API 598 Globe Valve Maker: ASTM A216 WCB Globe Valves, 10 Inch, Class 150 LB, PN20, API 598, BS 1873, Flanged RF End, Test API 598, Carbon, Stainless, Alloy Steel.
Request a quoteTags
Detail Information
Carbon Steel Globe Valve, API 598, 10 Inch, 150 LB.
Quick Detail
Design standard: BS 1873.
Body material: ASTM A216 WCB.
Nominal diameter: 10 Inch (DN250).
Pressure: 150 LB (PN20).
End connection: RF.
Face to face: ANSI B16.10.
Working temperature: -29℃ - +427℃.
Test and inspection: API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2-24 Inch (DN15-DN600).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB (PN16-PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃ - +560℃.
Quick Detail
Design standard: BS 1873.
Body material: ASTM A216 WCB.
Nominal diameter: 10 Inch (DN250).
Pressure: 150 LB (PN20).
End connection: RF.
Face to face: ANSI B16.10.
Working temperature: -29℃ - +427℃.
Test and inspection: API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2-24 Inch (DN15-DN600).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB (PN16-PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃ - +560℃.
