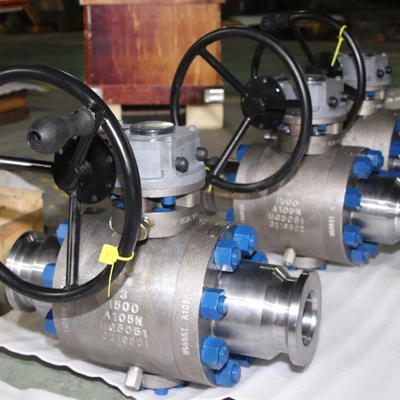

3 Inch 1500 LB Trunnion Ball Valve, ASTM A105N, SW, API 6D
Key Specifications / Features
Model No.: Hits: 9
3 Inch 1500 LB Trunnion Ball Valve Manufacturer: Trunnion Mounted Ball Valves, Forged Steel ASTM A105N, SW End, API 6D, 3 Inch, 1500 LB, Test API 598.
Request a quoteTags
Detail Information
Trunnion Mounted Ball Valve, CL1500, 3 Inch, Forged Steel, ASTM A105N, RF, API 6D.
Valve Description
Design standard: API 6D.
Body material: ASTM A105N.
Nominal diameter: 3 Inch.
Pressure: Class 1500 LB.
End connection: SW.
Face to face: ASME B16.10.
Working temperature: -29℃ - +427℃.
Test and inspection: API 598.
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2- 60 Inch (DN50-DN1500).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator.
Working temperature: -46℃ - +200℃.
Valve Description
Design standard: API 6D.
Body material: ASTM A105N.
Nominal diameter: 3 Inch.
Pressure: Class 1500 LB.
End connection: SW.
Face to face: ASME B16.10.
Working temperature: -29℃ - +427℃.
Test and inspection: API 598.
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2- 60 Inch (DN50-DN1500).
End connection: BW, Flanged.
Pressure range: Class 150-2500 LB (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator.
Working temperature: -46℃ - +200℃.
